VanAire DAF®
DAF Rental Opportunities
The perfect solution to your short-term need.
The perfect solution to your short-term need.
With multiple sizes available and flow rates that start from 10 GPM up to 1,500 GPM, a VanAire DAF rental can tackle any thing you throw at them. These units are delivered to your site and integrated with your existing systems with minimal effort.

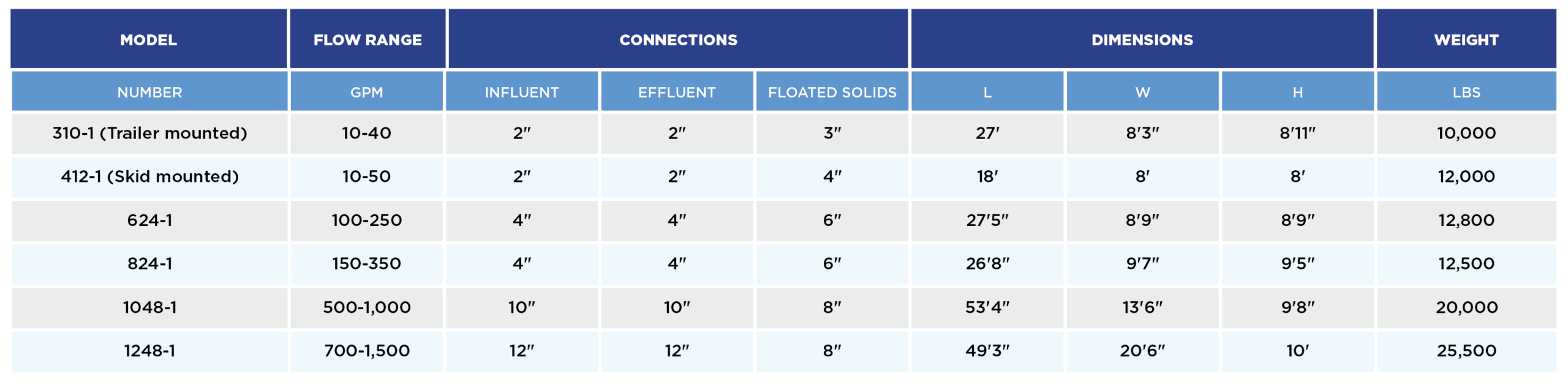

Rental sizes include:
310 DAF, Flow range 10-30 GPM (Trailer mounted)
618 DAF, Flow range 50-100 GPM
624 DAF, Flow rangę 50-200 GPM
725 DAF, Flow rangę 75-200 GPM
824 DAF, Flow range 100-300 GPM
1048 DAF, Flow range 100-1,500 GPM

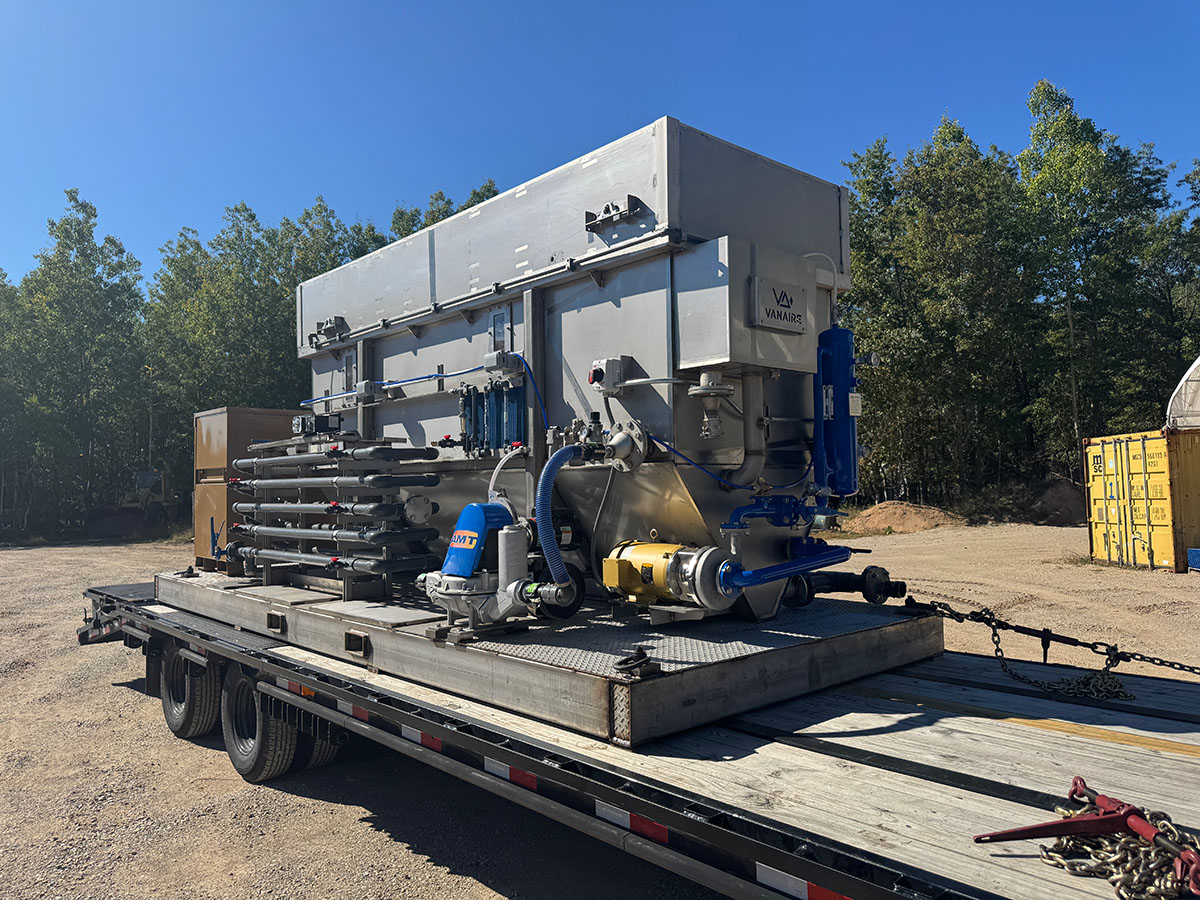

The VanAire Pilot Trailer
A fully-contained DAF (Dissolved Air Flotation) system that can be used for testing before purchase or rented on a short-term basis depending on your needs.
Features of a VanAire DAF:
Air Vent Valves
A ball valve is mounted on top of each Saturation Tank. They vent a small amount of surplus air to avoid turbulence caused by large bubbles in the DAF.
Saturation Tank Headers
Pump Discharge Pressure Gauge in foreground with Air Injection Rotameters and Saturation Pressure Gauges in background.
Rotameters
Injected air volume is adjusted and monitored with one Rotameter per Saturation Tank.
Modular Aeration Skids
Modular aeration skid, common to our 150gpm, 300gpm (shown), and 450gpm aeration units, has a footprint of “approximately” 6′ x 4′ and stands 6′ tall.
Pump and Motor Subassemblies
100GPM and larger aeration pumps and motors are mounted on a subassembly which is attached to the main aeration skid via three spherical washers to reduce external force inputs that influence pump and motor alignment.
Sulzer Pumps
A closeup of the Sulzer Aeration Pump, the heart of our system. The pump shown is from the popular 300 gpm aeration system.
Contact us today
Trevor Schmitz
Technical Sales & Service
West of the Mississippi
tschmitz@vanaireinc.com
906.280.4620
Cory Hudson
Technical Sales & Service
East of the Mississippi
chudson@vanaireinc.com
906.399.1560
Jeff Torvinen
Director: Wastewater Systems
jtorvinen@vanaireinc.com
906.428.2740
Why VanAire DAF technology has stood the test of time
COST EFFICIENT
• Reduction in wastewater surcharges and further treatment expense
• Better energy efficiency—physical separation vs. biological treatment
• Reduction in chemical usage—smaller more abundant bubbles float a finer floc
• Cost efficient, in-house manufacturing
DESIGN
• Reduce or Eliminate Surcharges
• Reduce Chemical Usage
• Reduce TSS, BOD and FOG
• Cost-efficient, in-house manufacturing
RESULTS
• Minimal Operator Involvement
• Complete Wastewater Treatment Systems
• Leader in Dissolved Air Flotation Systems
• Aeration and skimmer flight retrofits for existing systems
BENEFITS
• Custom Design, Build and Install
• Proven Technology
• Pilot / Rental Units Available
• 2-year Warranty, twice as long as industry standard
